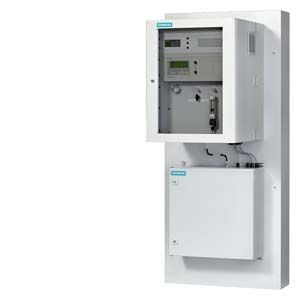

Technical data of Set BGA
|
|
Installation
|
|
Ambient temperature
|
5 … 38 °C, with cabinet heating ± 0 °C
|
|
Site
|
Indoor/outdoor installation (configurable)
|
|
Gas inlet conditions
|
|
Sample gas pressure
|
- With pump, depressurized suction mode, selectable with internal or external pump
- Provision must be made for a pressure reduction for pressures greater than 1 200 mbar absolute
|
|
Pump performance
|
Adjustable to 60 … 80 Nl/h
|
|
Sample gas temperature
|
Max. 45 °C, with moisture saturation
|
|
Power supply
|
|
Supply 1
|
200 … 240 V AC, 47 … 63 Hz
|
|
Supply 2
|
100 … 120 V AC, 47 … 63 Hz
|
|
Power consumption
|
Approx. 180 VA (without cooler and sample preparation)
|
|
Connection systems
|
|
Teflon hose
|
With PVDF screwed glands
|
|
Connection systems
|
Metric (6 mm) or imperial (1/4") selectable
|
|
Dimensions
|
|
Set BGA measuring system (W x H x D)
|
600 x 781 x 600 mm
|
|
Sample preparation (W x H x D)
|
600 x 600 x 220 mm
|
|
Weight
|
|
Set BGA measuring system
|
Approx. 50 kg
|
|
Sample preparation
|
Approx. 22 kg
|
|
System design
|
|
System housing
|
3-part sheet-steel housing with window
|
|
Degree of protection
|
IP54
|
|
Cabinet conditioning
|
Fan
|
|
Cooling system
|
Peltier cyclone cooler (optional)
|
|
Sample preparation
|
Max. six sample streams can be controlled using Logo module with fast loop pump in separate housing
|
|
Analog outputs
|
Per component 0/2/4 … 20 mA; NAMUR, floating, max. load 750 ?
|
|
Measured components / measuring ranges
|
|
CH4
|
0 … 100 vol% to 0 … 20 vol% (NDIR)
|
|
CO2
|
0 … 100 vol% to 0 … 20 vol% (NDIR)
|
|
O2
|
0 … 25 vol% to 0 … 5 vol% (electrochemical or paramagnetic optionally selectable)
|
|
H2S
|
0 … 5 000 ppm (electrochemical); optional
0 … 5 ppm to 0 … 50 ppm (electrochemical); optional
|
|
Safety assemblies
|
|
Assembly 1
|
Detonation protection F501
|
|
Assembly 2
|
Flow measurement with limit monitoring at the output
|
|
Assembly 3
|
LEL monitoring (optional)
|
|
Comment
|
- The system concept of the Set BGA is based on the preconfigured ULTRAMAT 23 solutions (7MB2335-…, 7MB2337-…)
- The technical performance data concerning the measuring response correspond to the catalog data of the ULTRAMAT 23. The preconfigured version does not contain any ULTRAMAT 23 add-ons or retrofitting sets.
|
