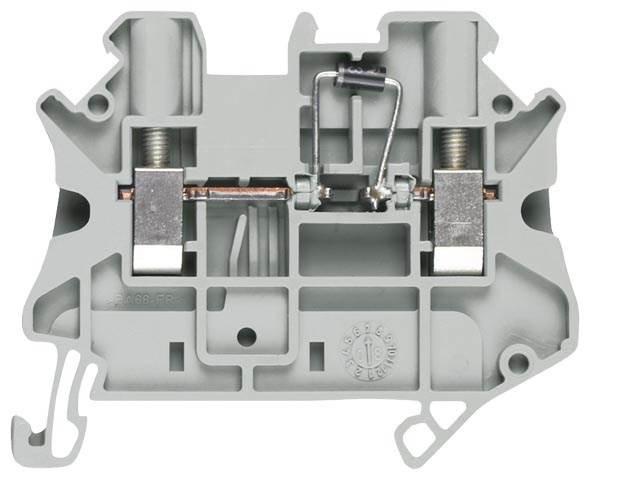

8WH diode terminals can be used to implement many different switching tasks. The 1N 4007 diode is soldered in from left to right or vice versa as required. The double bridge shaft allows for combination with all standard and function terminals. The 8WH diode terminals have the same contour as the 8WH isolating, isolating blade and fuse terminals. This provides the advantage of being able to put inscriptions on all clamping points. Sure electrical and mechanical contact with the mounting rail is assured by simply snapping the terminals onto the rail.
Version
Order No.
Terminal size 4 mm²
8WH1 000-6KG00
Diode terminals, terminal size 4mm²
CURUS
CSA
Terminal width 6.2 mm
Imax = 0.5 A
Umax = 800 V
AWG 26-10
Connection capacity, one conductor
rigid 0.14... 6 mm²
Flexible 0.14... 6 mm²
Connection capacity, two conductors
rigid 0.14... 1.5 mm²
Flexible 0.14... 1.5 mm²
With integrated diode: 1N 4007
Gray
Versions
let-through from left to right
8WH1000-6LG00
let-through from right to left
8WH1000-6KG00
Accessories
Section
Cover, for diode terminals, for terminal size 2.5 to 4 mm²
Accessories
8WH9000-2PA00
Warning covers, for terminal size 4 mm²
dto.
8WH9063-5BA06
Accessories
8WH9 000-2PA00
Cover, for diode terminals, for terminal size 2.5 to 4 mm²
