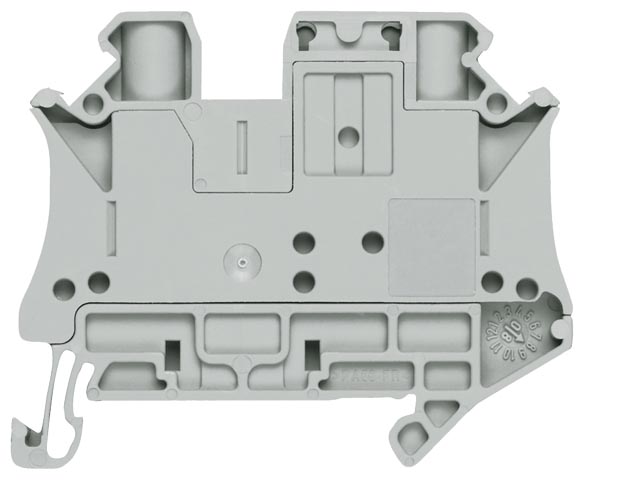

ENG: 8WH Isolating Terminals
8WH isolating terminals serve for mounting various function plugs.
| |
Version
|
Order No.
|
|
Terminal size 4 mm²
|
|
8WH1 000-6AG00
|
Isolating terminals, terminal size 4 mm²
-
CURUS
- CSA
- Terminal width 6.2 mm
-
I
max = 20 A
-
U
max = 400 V
- AWG 26-10
- Connection capacity, one conductor
- rigid 0.14... 6 mm²
- Flexible 0.14... 6 mm²
- Connection capacity, two conductors
- Enclosed on both sides
- Gray
|
8WH1000-6AG00
|
|
Terminal size 6 mm²
|
|
|
8WH1 000-6AH00
|
Isolating terminals, terminal size 6 mm²
-
CURUS
- Terminal width 8,2 mm
-
I
max = 20 A
-
U
max = 500 V
- AWG 24-8
- Connection capacity, one conductor
- rigid 0.2... 10 mm²
- Flexible 0.2... 10 mm²
- Connection capacity, two conductors
- Enclosed on both sides
- Gray
|
8WH1000-6AH00
|
|
|
