Brief overview
|
|
Type of Module
|
Function
|
Power range
|
|
Active Line Module
|
Supply and regenerative feedback unit to feed the connected motor modules
|
4.16 kV: 7900 kVA
|
|
Motor Module
|
Inverter for the connected motor
|
4.16 kV: 7200 kVA
|
|
Braking Module
|
Central brake chopper as cost effective alternative to the active line modules when regenerative energy occurs
|
4.16 kV: 6400 kW
|
|
Recooling Module
|
Unit dissipates the power loss from the converter
|
200 kW power losses
|
|
Control Module
|
Unit controls and monitors the drive
|
For one motor axis with one control unit
|
Drive Characteristics

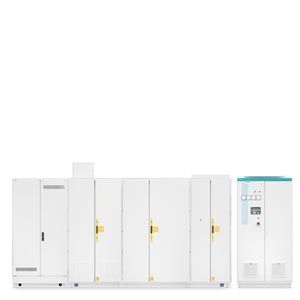

The SINAMICS SM120 Cabinet Modules system features:
- Active Line Module with industry-leading M2C (Modular Multilevel Converter) topology
- Motor Module with most common and widely used 3-level NPC, optionally equipped with output reactor allowing cable length up to 1000 m
- Control Module featured with SINAMICS platform-wide used components
- Braking Module that allows controlled ramp down also in case of power supply failure (option)
- Recooling Module with redundant pumps
Other modules for additional applications will be available at a later date.
|
|
