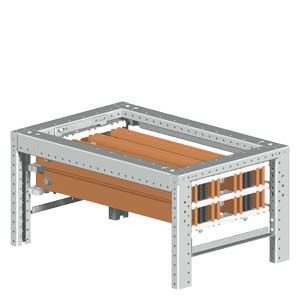

Main busbar, standard position top

Characteristics

• Compatible busbar sections
  20 ? 10
  30 ? 10
  40 ? 10
  50 ? 10


Configuration

Number of required reinforcements (1) depending on cubicle widths and rated short-time withstand current.

Main busbar, standard position top

Main busbar, standard position rear

Characteristics

• Compatible busbar sections
  20 ? 10
  30 ? 10
  40 ? 10
  50 ? 10

Copper bar, flat copper

Main busbar, standard position rear
