ENG: Flushing rings
Connection to EN 1092-1
|
DN
|
PN
|
d4
|
di
|
h
|
Weight
|
|
(mm)
|
(bar)
|
(mm)
|
(mm)
|
(mm)
|
(kg)
|
|
50
|
16 ... 100
|
102
|
62
|
30
|
1.10
|
|
80
|
16 ... 100
|
138
|
92
|
30
|
1.90
|
|
100
|
16 ... 100
|
162
|
92
|
30
|
3.15
|
|
125
|
16 ... 100
|
188
|
126
|
30
|
3.50
|
Connection to ASME B 16.5
|
DN
|
Class
|
d4
|
|
di
|
|
h
|
|
Weight
|
|
|
inch
|
|
mm
|
(inch)
|
mm
|
(inch)
|
mm
|
(inch)
|
kg
|
(lb)
|
|
2
|
150 ... 600
|
92
|
(3.62)
|
62
|
(2.44)
|
30
|
(1.18)
|
0.60
|
(1.32)
|
|
3
|
150 ... 600
|
127
|
(5)
|
92
|
(3.62)
|
30
|
(1.18)
|
1.05
|
(2.31)
|
|
4
|
150 ... 600
|
157
|
(6.18)
|
92
|
(3.62)
|
30
|
(1.18)
|
2.85
|
(6.28)
|
|
5
|
150 ... 600
|
185.5
|
(7.3)
|
126
|
(4.96)
|
30
|
(1.18)
|
3.30
|
(7.28)
|

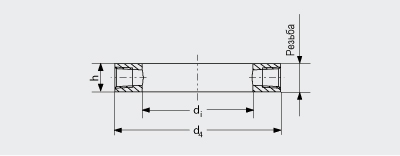

Flushing ring, dimension drawing
|
|
